Maintaining health of your car or vehicle, transmission is the crucial system. The transmission temperature gauge is one of the multiple tools that one can use in order to monitor its performance. By measuring the operational temperature of your transmission fluid in real time, this gauge can help you avoid expensive repairs as well as guarantee long life of your car. A transmission temperature gauge is essential in monitoring the right temperature of your transmission fluid as this ensures that you prevent failure of the transmission.

Why It Is Important to Monitor Transmission Temperature

The transmission is one of the most important parts of a vehicle. It ensures that it runs a car smoothly by automatically changing gears depending on speed and engine Rpm. The transmission fluid plays a crucial role in this process since it not only serves to lubricate the internal moving parts but it also, cleans and cools the system. In the absence of adequate lubrication, and cooling, the parts of the transmission may develop excessive friction, and overheat, which will cause premature wear and, ultimately, destruction.

The transmission fluid is set to a particular temperature range of operating and when it goes above the range, it degrades. Hot temperatures destroy the characteristics of the fluid that had been used and provide high levels of friction and wear. When the transmission overheats, the parts in the system, including seals and gears become more vulnerable to damage. With no transmission temperature gauge, it may be hard to tell when this fluid is already being exposed to dangerous temperatures and hence the need to have this gauge.

The Hazards of Overheating

On the contrary, as per the automotive experts overheating of the car is one of the reasons what causes the transmission to fail. Indeed, certain studies indicate overheating may cause as much as 90 percent of all automatic gearbox breakages. As transmission fluid heats over the upper limit, it can permanently damage the transmission system to transmission system improper functioning, costly repairs, or even replacement. With regular maintenance and checking on the temperature using a transmission temperature gauge, you can change the oil before overheating can cause damage to the transmission.

Besides maintaining the long life of the transmission, with a temperature gauge installed, it is possible to increase the overall vehicle performance. Operating within its ideal temperature range, the transmission will shift more smoothly and efficiently, which will further help increase fuel economy and general driving experience.

How the Transmission Temperature Gauge Works?

Elements and Tiny bit of functionality

A transmission temperature gauge is a device that measures levels of heat in the transmission fluid. The mechanism usually comprises an instrument, a gauge and in some cases a digital control device. The sensor commonly finds its location either in the transmission pan or on the cooler line of the vehicle transmission system. It determines the rate at which the fluid that flows through the transmission is hot or cold and then sends the information to the gauge which is placed on the dashboard or the center console.

The indicator will then indicate the transmisson temperature in realtime passing that information back to the driver. In automobiles, now most cars are equipped with internal sensors, which feed information to the computerized system on board and the temperature can be shown on a digital display. Older cars or more performance-oriented vehicles might need aftermarket transmission temperature dials as they give better readings and are adjustable.

The primary purpose of the sensor is to sense the temperature of the fluid, although other complementary components may be built-into the gauge itself, including warning lights or alarms to remind the driver that the fluid temperature is too hot. Some premium gauges are also programmable (selecting a temperature level that signals an alarm).

Coefficient of Transmission Temperature Gauge Types

Transmission temperature gauges will be found in two major variants; the analog and digital. The two are both used to serve the same fundamental role with different ways of presenting information.

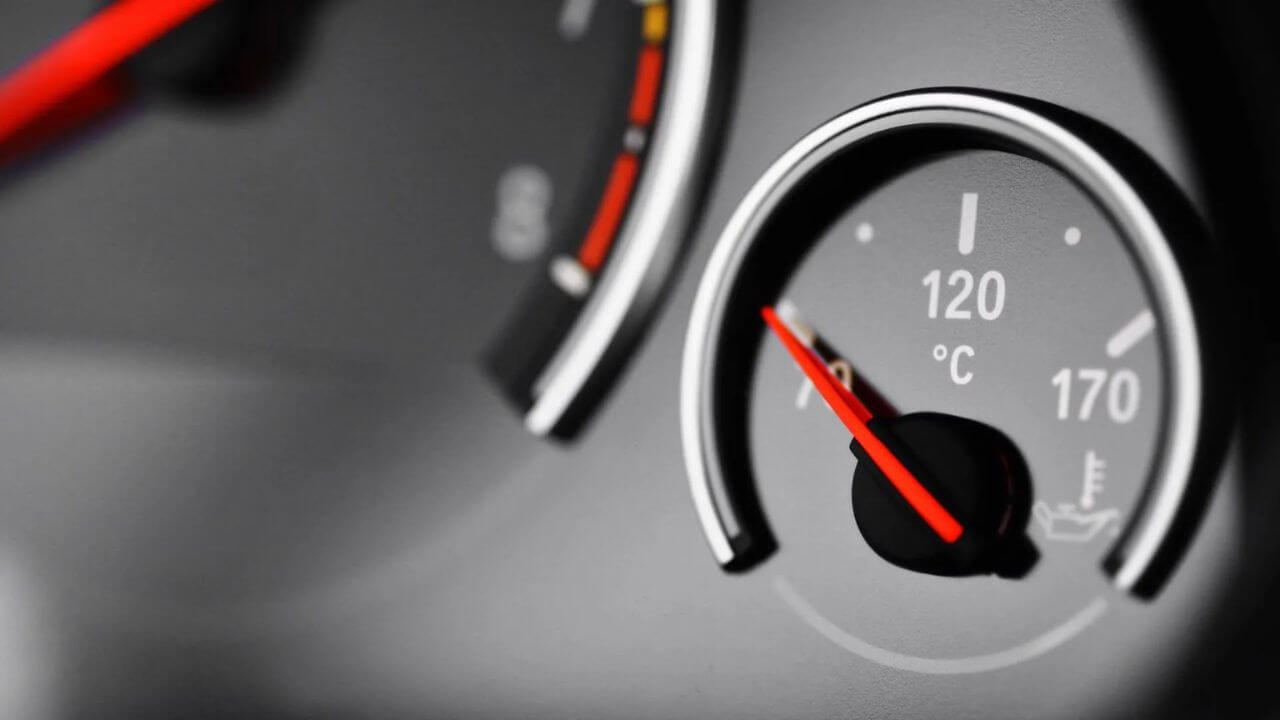

Analog Gauges: These gauges use a needle that will show the transmission fluid temperature. Analog gauges are easy to read, simple to understand, and generally have a retro look. They normally possess a scale with a temperature range that indicates the optimum temperature, the low and the high temperatures.

Digital Gauges: These gauges represent the numeric reading of the temperature and can include other features like alarm, warning and even the capability to display engine and other parts temperature. Digital gauges are more accurate and are generally more popular in higher performance cars where precision is very important.

Optimum Transmission Fluid Operating Temperature

The Range of Temperature

It is also necessary to keep the right transmission fluid temperature in order to smooth the work of the transmission. Optimum temperature that most automatic transmissions should be between 175 o F and 225 o F (approximately 80 o C to 107 o C). Within this range, the fluid maintains high level of efficiency in lubricating and cooling the system. Leaving the transmission in this temperature range makes sure that the components are in the very best condition and less likely to experience overheating and mechanical malfunctions.

At temperature surpassing 225o, the transmission oil begins to degrade. The fluid molecule starts to break down, which deprives him of the possibility of successful lubricating the internal components. This adds friction to the transmission which speeds up wear in the seals and gears.

Temps higher than 250oF are particularly tough, and may inflict permanent harm on the transmission. Fluid breakdown starts at 250 degree Fahrenheit or above the temperature levels at which the fluid tends to break easily, making transmission to be less efficient and prone to failure. Therefore, using a gauge to keep the transmission temperature under control, the drivers can be sure that they take some action at some reasonable time before the transmission fluid can deteriorate.

Temperature Variances and their effects

Transmission fluid temperature variations may arise as a result of different driving conditions such as long ascents, towing or urban stop-go traffic. Such conditions place an added burden on its transmission and make the fluid warm itself faster. A temperature gauge will enable them to monitor these changes in real time making sure that the transmission is not overheating under tough demand. Some drivers opt to have auxiliary coolers that will help to maintain the temperature level during such adverse settings.

Indications of Overheating as well as the Gauge Trick Significance

How to detect thermal overloading of a transmitter where there is no gauge?

Lacking a transmission temperature gauge, it may be too late to notice overheating damage once it has already been done. Nonetheless, it is possible to tell that overheating may be occurring by observing a few indicators. These include:

Slipping Gears: If the vehicle has difficulty shifting gears or takes longer to engage a specific gear it may be an indication that the transmission fluid is too hot and has lost its effectiveness to lubricate.

Abnormal Sounds: Grinding, whining, or clunking sounds emerging out of the transmission are a tell-tale sign that the parts are rubbing in opposition to one another because of an absence of good lubrication that may have been brought on by overheating.

Warning lights: Some of the contemporary vehicles have warning lights on the transmission temperature. When the gauge hits a critical temperature the light will come on indicating to the driver to take an action.

Reduced Performance: Overheating of the transmission may reduce the overall performance of the transmission. The automobile can seem slow or leaden

The transmission temperature gauge presents a pro-active future in the elimination of such problems, as early warnings are created. Rather than waiting till a light comes on or strange sounds are heard, the gauge can give you a heads-up before things get out of hand so that you can pull over and resolve the matter promptly.

Loading and Unloading of the Gauge

Transmission Temperature Gauge – How To Install

Installation of a transmission temperature gauge takes some degree of technical expertise but is not too difficult. The following procedures are normally followed during the process of installation:

Install the Sensor: This sensor should be put in the transmission system, and usually, it is placed in the pan or in the cooler line. This needs some sections of the transmission system to be removed to fix the sensor to a secure position.

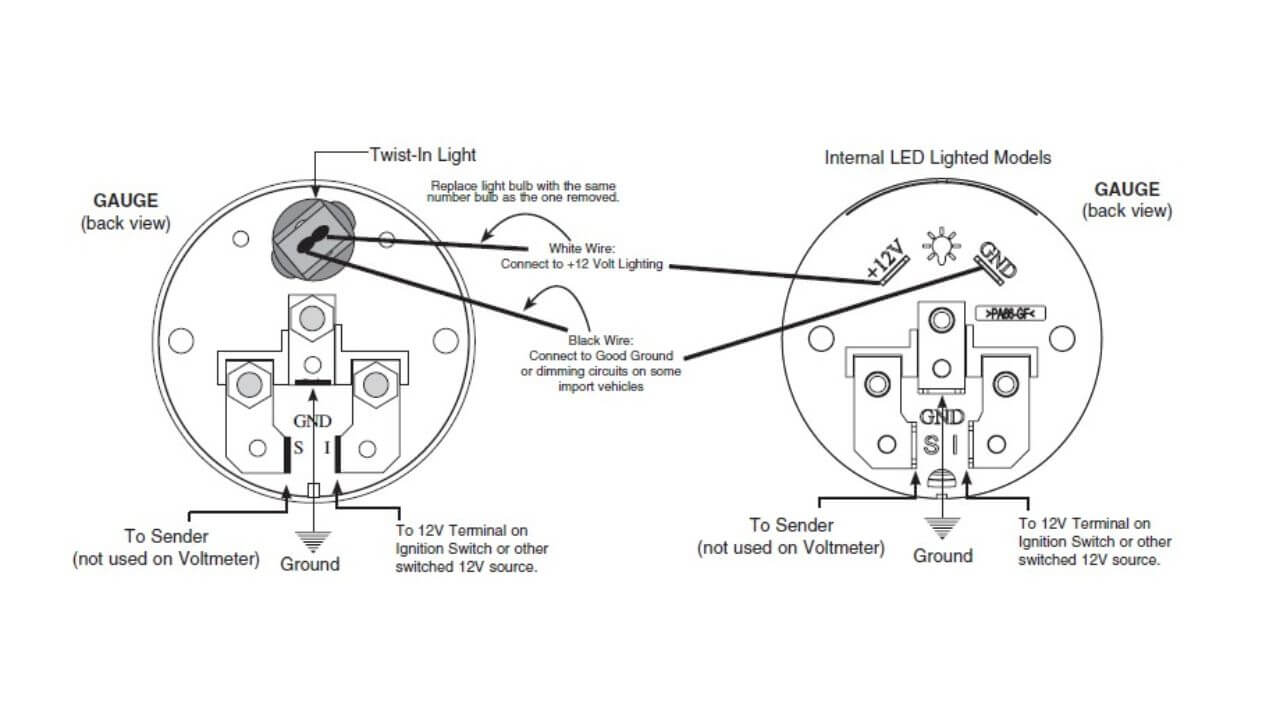

Connect the Wiring: the sensor should be connected to the gauge on the dashboard. If you are fitting in a digital gauge, make sure that it fits into the electrical circuitry of the car.

Install the Gauge: After the sensor and its wiring is installed, fit the gauge where it is prominently seen such as the dashboard or center console. Make sure it is firmly mounted and plugged-in.

Testing and Calibration: Once the system is set up, put it in testing to make sure that the gauge is functioning properly. Ensure that the readings are associated with what would be expected of the fluid temperature on the normal driving routine.

Regular Maintenance

There is a need to take care of the given gauge in order to ensure it performs optimally. Schedule maintenance involves

Inspecting Fluid Levels: Checking the level of transmission fluid and, seeing whether it has deteriorated or not. Checking the fluid levels is very vital as overheating may easily happen when the fluid is low.

Flush the Transmission Oil: Flushing of the transmission fluid is to be done periodically to make sure that no contaminants build-up in the system. Clear fluid is useful in ensuring there is consistency in temperature control

Battery Gauge: Always ensure to check the battery gauge and the equipment shows the right measurements. Ensure connections are wired well and that the sensor is not harmed.

Results

In sum, the transmission temperature gauge is an essential device in service of a vehicle owner interested in maintaining the wellbeing of her/his transmission system. The practical access to temperature will also allow drivers to know early as to whether they have a problem and therefore seek the earlier service and repair before things go completely out of hand. Regardless of whether you own a regular commuter or a high-performance vehicle, purchasing a transmission temperature gauge to protect your vehicle is a smart choice to make to extend and maintain the integrity and performance of your vehicle.

You should bear in mind that the transmission system is the heart of your vehicle constantly being in replenishment. Maintaining it cool and well-maintained assures your vehicle to keep on performing at its best in the years to come. Inspection of the transmission fluid temperature is one simple and effective way that can help avoid costly repairs, increase the life of your car and generally help improve the performance of the car.
