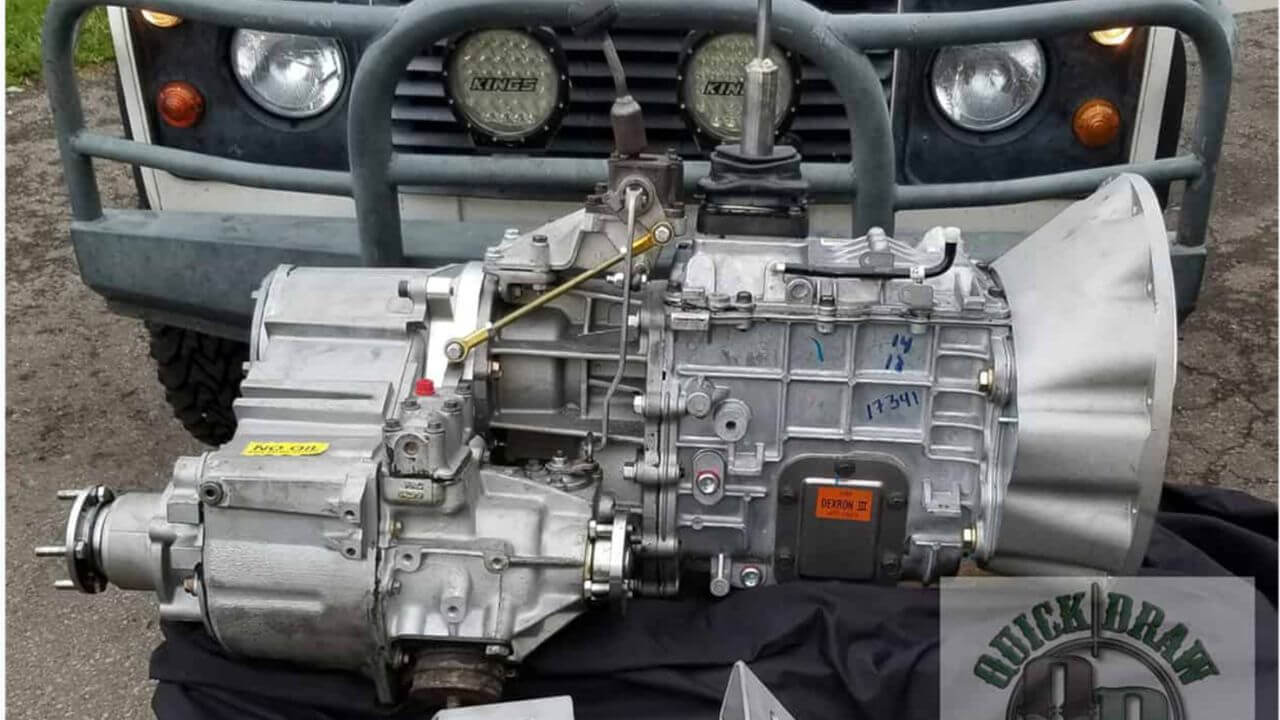

Why theNV4500 Transmission remains Relevant in 2025
The nv4500 has gained cult status among the people who own American truck, off roaders and even among the powertrain engineers in this country. Since the initial mating to the muscle bound 5.9-inch Cummins diesel in 1992, the gearbox was associated with bulkhead reliability. And to this day–though there are now 20 years of newer, six and ten speed automatics pouring onto dealer lots–the nv4500 transmission still lists with sky-high resale values, and is one of the hottest engine swaps, as well as classic-truck parts. Since then, it has become a classic case of the bulletproof, cast-iron toughness, wonderfully versatile gear ratios, and a driving experience that makes hard, heavy work something that is decidedly, enjoyable.
Emergence of the NV4500 gear box
Innovation in the Early 1990s
New Venture Gear, a GM/Chrysler joint venture, developed the nv4500 transmission to replace weaker four speed transmissions, which had difficulty with the ever-increasing torque of diesel, and large block gasoline engines. To ensure work trucks could continue crawling over construction sites with confidence, engineers put a huge 5.61:1 first gear into a wide and crawler-friendly spread up to 0.73:1 overdrive to allow the trucks to cruise comfortably along at highway speeds. Synchro blocking became unique with cast-iron cases, forged gears, and carbon-fiber synchronizers (enhanced after 1996) being revolutionary in the manual-transmission market.
Ongoing Fine-tuning
During the 1990s and first part of the 2000s, Chryslers NV4500HD variant saw the torque limit bumped up to a claimed 460 lb-ft, and GM versions also had a variety of input-shaft lengths and bellhousing patterns to suit 350-inch V8s, the 6.5-liter turbo-diesel and even their 8.1-liter V8. Despite officially ceasing mass production in 2007, the nv4500 transmission continues to exist in both in remanufactured form and aftermarket gearsets which balance far more torque than ever stock, often over 650 lb-ft, a result that shows timeless engineering can rarely be left out of fashion.
Core Engineering: Gear Ratios, Strength and Serviceability
Gear ratios, synchronizer design
The core of the nv4500 transmission is five-speed arrangement that achieves a mixture of savage power and drivability:
1st– 5.61:1 is the stump-pulling torque to get boats up slippery launching ramps.
2nd 3.04:1 maintains sustains loads with no jerking jump in rpm.
3rd is 1.67:1 and 4th is 1.00:1 that straddles the sweet spot of everyday traffic.
5th – 0.73:1 overdrive slows engine by about 27 percent at 70 mph consuming less fuel with the added benefit of less cabin noise correction.
In contrast to most current manuals which would feature brass rings, the nv4500 transmission is instead equipped with dual-cone carbon-fiber synchros to soothe tough gears. The end result is incredibly smooth shifts- even when coupled with farm grade, high viscosity, gear oil.
Strange Torque Ratings and Cooling
The heavy-duty versions are nearly 200 pounds dry weight but ample case ribbing and an internal oil pump are able to maintain temperatures during prolonged climbing of mountains. Aftermarket deep pans bring an additional one quart of lubricant, further prolongs service life at well beyond 300,000 miles when serviced according to a maintenance schedule.
Matching Powerplants: Engine-Specifications which Match the NV4500 Transmission
Manual afficionados understand that engine gearbox pairing is both an art as well as science. Three legendary pairings are listed below, in the process stressing why the nv4500 transmission has turned out to be the default option with torque-heavy motors.
5.9-Liter cummins 12-valve (1994 – 1998 dodge ram)
Engine: inline-six turbo-diesel
Output 215 hp @ 2,700 rpm; 440 lb-ft @ 1,600 rpm
Why It Works: Long-stroke diesel grunt plays well with the 5.61 first gear and as such an easy start is easy with a 12,000
pound trailer.

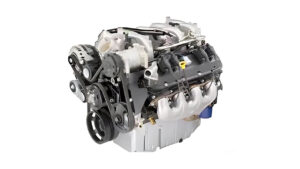

Vortec 8100 Big-Block (2001 -2002 Chevy silverado 2500HD)
Engine: 8.1 liters 8 cyl Ring 2 gasoline
Power: 340 hp @ 4, 200 rpm; 455 lb-ft @ 3, 200 rpm
The wide torque band compensates for the wider gear spacing and the 07:3 overdrive in the nv4500 transmission keeps the revs below 2,300 rpm at interstate cruising speeds.

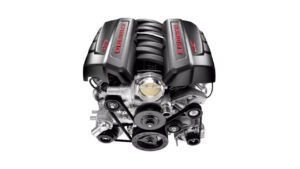

6.0-Liter LS-Based V8 Swaps (Aftermarket Swaps)
Engine: All-aluminum Gen-III/IV V8
Power: 360 horsepower (270 kW) at 5,400 rpm; 380 pound-feet (511 N m) at 4,400 rpm (normal)
Why It Works: Airflow gets free through lower-weight LS engines at higher rpm, but the solid nv4500 transmission outwits off-idle torque busting driveline parts when climbing rocks.
Hands-On: Interior Design of NV4500-Based Trucks
Despite the fact that transmissions are situated behind the floorpan, they have a radical impact on cabin feel. The earlier Dodge Rams 2500s have the dog-leg shifter so that it appears on top of the tunnel as a heavy steel joystick. But with short-throw aftermarket parts, throws are reduced to a tight three inches, with a sports-car-like tactile response that would not seem that a truck weighed 8,000 pounds in curb weight. In the interim, Chevrolet has engineered the center console of the Silverado to hold the elbow of the driver, and therefore rowing through gears is more of a sweaty muscle car than doing teleoperations on a task-line truck.
Acoustic engineers must be given credit as well; in 2002 GM improved floor insulation and reduced other drivetrain noises by 3 decibels. Consequently, the nv4500 transmission has a smooth stage to shine at featuring a set of synchronized gears that give the transmission an iconic mechanical snick on the way up that gearheads associate with vintage Porsche Getrag transmissions. The aftermarket offers leather-wrapped knobs, billet-aluminum shift extensions and hydraulic clutch pedals, among other things, that continue to update the tactile feel of the interior without losing any of the analog feel that die-hard truckers have come to love.
Real-World Reliability: Field Reports, Insights Expert
The fleet statistics of Midwestern energy companies include failure rates less than 1.8 percent at 250,000 miles with trucks having a fluid change at 30,000 miles. Synth 75W-90 withstands thermal decomp in desert climate, high zinc GL-4 oils are used to protect fiber rings of carbon.
Dr. Lauren Hunt, senior drivetrain researcher at the Center for Automotive Powertrain Research, explains that in durability testing we ran the nv4500 transmission at 480 lb-ft all the time over 100 hours with absolutely zero fractures in the gear teeth. Its metallugy sets a standard against the present manuals that usually use aluminum shells but at a lighter weight rather than being sturdier.
Owners proclaim the same. Laramie, Wyoming rancher Mike McClain relates how he only changed one of his clutch disks after he hauled cows in the Rockies 375,000 miles, and attests that he swears he will never trade in that stick even though there are thirty gears in there.
Transmission swaps and aftermarket support NV4500
Custom bellhousings suitable all the way back to Vintage Land Cruisers, as well as K-series Chevrolets, and even 1970s Jeep J-trucks now enable nv4500 transmission upgrade. Since the gearbox has a 23-spline output, compatible with the NP205 and Atlas transfer cases, off road builders spare the expensive adapters. Even more advanced are companies such as Advance Adapters and Novak which sell all the things– pilot bushings down to crossmember kits–which allow weekend mechanics to fully perform conversions in one garage day.
Rebuilt units sell at about 3,200, but strangely enough, the resale value has found strange staying power; Craigslist can be found with cores as low as just needing synchronizers routinely selling over 1,800. That speaks volumes of basic economics, low production and high demand of torque enthusiasts who seek the manual that quickly becomes a Torque Monster: You just can not get enough!
Clutch Flywheel options
Organic disks are used in daily traffic, and ceramic dual-disks are sled-pull proof. The fact that miniature aluminium flywheels modernise throttle reaction during LS swaps, whilst the major flywheel retains momentum in the rear of diesels means that the nv4500 gearbox is flexible between haul power curves.
The Problems and Standard Solutions
When it comes to every engineering marvel, it is bound to have its quirks. Such as the infamous fifth-gear nut walk of the nv4500 transmission, in which the overdrive gear hypnotically releases, due to constant vibration. But it is the modern retrofit kits that use locking retainer in order to get the problem under control. And older models have switch-style neutral safety sensors, which can wear out, resulting in start-in-gear headaches. This aggravation is resolved by harnesses with better pigtails that do not cost more than 25 dollars.
Summary- The NV4500 Transmission- The Key to the Eighties
Its nv4500 transmission does not just survive due to nostalgia but rather due to the fact that it adheres to the strict E-E-A-T performance category that we moderns now expect of any component trusted to shepherd families, freight and dreams. It is as bellissimos as to mate with classic engines, can even work in old and modern settings and can even deliver pleasure in its tactile quality that no torque-converter automatic car could some up. So, whether it is a classic Dodge Ram restoration you seek, a tardis-like LS rock crawler, or you just need an unfiltered relationship between horsepower and asphalt you should keep the nv4500 transmission on your shortlist again and again, the transmission re-inforces why some legends never shift out of style.
