Learn about the high performance and long life of the Cat 3208 engine – a legendary V8 diesel engine that is relied upon in the marine, industrial, and agricultural industries.

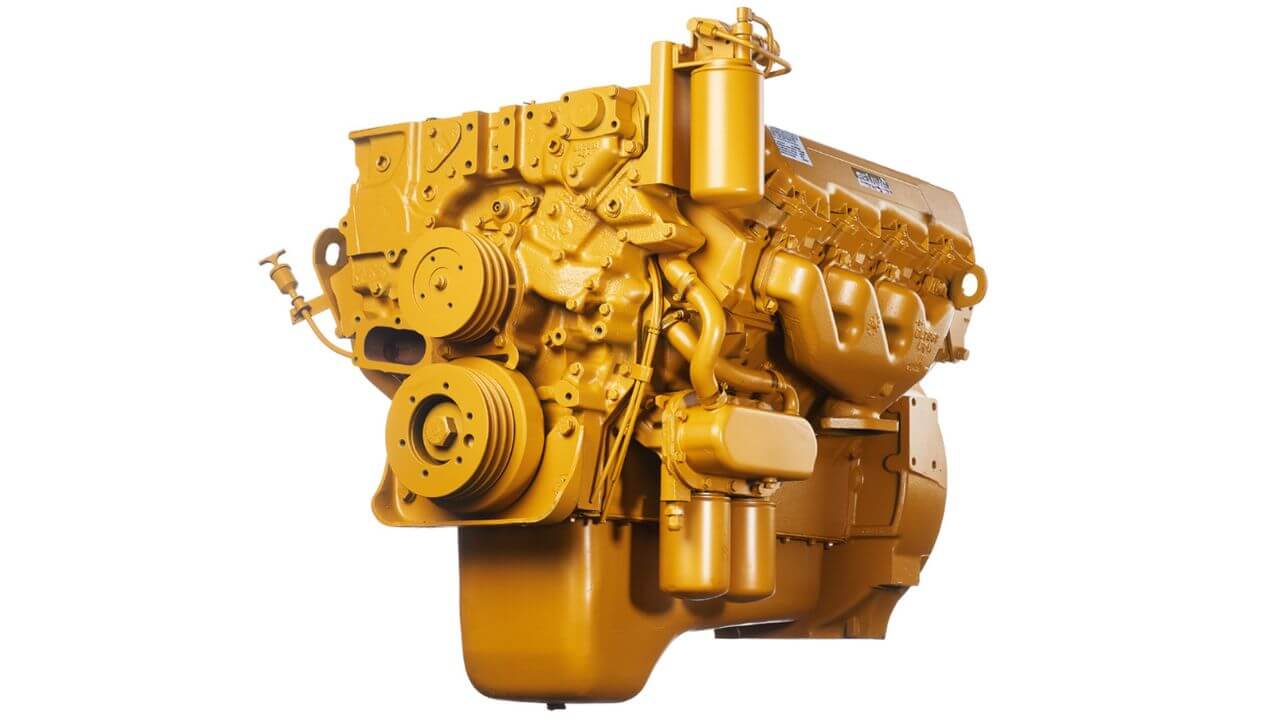

The Cat 3208 engine is a legendary V8 diesel engine that Caterpillar developed and is known as one of the most reliable and versatile engines with numerous demanding uses. Since its introduction in the 1970s, the Cat 3208 has already become one of the most popular in the marine, trucking, industrial, and agricultural machinery due to its power, durability, and manageable maintenance. This blog gives a detailed discussion of the Cat 3208 engine, including its technical requirements, working capacities, maintenance concerns and general legacies. As an amateur or an expert in heavy machinery, the Caterpillar Cat 3208 will provide important information as to why this engine is still relevant to this day.

Cat 3208 Engine: Engineering design and Specifications.

The Cat 3208 engine is a powerful four-stroke 10.4 liter (636 cubic inches) V8 diesel engine with eight cylinders. It is designed in a way that highlights durability and toughness. This engine produces horsepower that varies widely depending on the engine design- approximately 210 HP in naturally aspirated engines up to approximately 435 HP in turbocharged marine engines. Its dimensions such as bore and stroke of 114.3 mm and 127 mm respectively add to the power density of this engine and it also runs in counterclockwise rotation as seen on the flywheel end.

Another characteristic of the Cat 3208 is that the engine block casting has inbuilt cylinder liners i.e. the engine cylinder walls form part of the engine block casting. This increases the rigidity of the block and simplifies the manufacturing of the engines, but since the block and the wear on the cylinder walls may necessitate block machining or replacement instead of a simple liner replacement. It uses a direct fuel injection system in the engine that has a sleeve metering technique which promotes efficiency in combustion, and mechanical simplicity. Aftercooling systems are designed to address the thermal loads on the engine of increased power output and may have up to 47 to 56 liters of coolant to adjust the engine temperature when running in sustained operation.

Applications and Performance of the Cat 3208 Engine.

The most critical factor that led to the continual operation of the Cat 3208 is its application in various industries. Cat 3208 turbocharged models that yield between 300 and 435 HP have proved successful in marine ships, such as yachts and workboats, where non-stop use and dependability are the primary concerns. Conversely, naturally aspirated engines with 210 to 250 HP have been extensively used on medium-duty trucks and buses, construction, and agricultural equipment, providing sufficient power and reduced maintenance factors.

The engine has hugely popular in a marine environment due to its small footprint and good power to weight ratio, which suits most medium-sized boats that require a strong propulsion engine but not the extra size or weight that heavier engines introduce. Though it has its strengths, the engine does have limitations in areas where high torque is needed at low speed such as is commonly needed in farming or heavy hauling conditions since its design focuses on the medium to high RPM performance.

The Cat 3208 is slightly less efficient than current engines with modern electronic controls, with an average rate of fuel consumption that is 510 per cent lower. Nevertheless, its simple mechanical fuel injection reduces the number of failure points in the electronics, so operators who do not have a high level of technical assistance can easily carry out repairs and maintenance on the ground. Such mechanical strength significantly helps in giving the engine the reputation of being reliable when operating under harsh conditions.

Professional opinion about the Cat 3208 Engine.

The gist of the Cat 3208 design philosophy is taken by Dr. Harold Gibson, one of the most renowned industrial historians and a specialist in diesel engines: “The Cat 3208 is a pure specimen of engineering pragmatism – it is stripped of modern-day complexities in favor of mechanical simplicity and rugged durability, which is why it still manages to survive in those applications where nothing less than dependability is negotiable (Gibson, 2024).

This analyst understanding explains why Caterpillar opted to keep things simple with a focus on durability and maintenance-friendliness instead of the advanced technology. The cast iron engine block, a lack of sophisticated electronic controls in earlier models and a well-developed fuel delivery system makes the 3208 a reliable engine, particularly where infrastructure support might be wanting.

Problems and general care of the Cat 3208 Engine.

There are operational and maintenance challenges associated with the Cat 3208 although it is considered a very reliable machine. It has cylinder liners which are integral to the engine, and hence engine rebuilds are more complicated and expensive because the cylinders need a special machine. One of the most common complaints with turbocharged marine models is overheating caused by improper maintenance of cooling system components including water pumps, heat exchangers and hoses.

A significant disadvantage is that its fuel efficiency is lower than that of the prototypes used in modern diesel engines which have electronic fuel injection technology and emission control technology. Other problems that seem to be very frequent include injector clogging and fouling, and to keep the performance on an optimal level, injector maintenance through either service or replacement is required after every 5,000 hours of operation. Moreover, when RPM surpasses recommended values (which are usually about 2,500 RPM), wear can be rapidly accelerated and lead to a catastrophic failure.

Most of the problems are alleviated through routine servicing like proper observance of oil change every 250 hours and regular inspection of the cooling system. These processes ensure that the engine continues to serve long service life and maintains the reputation of the Cat 3208 as a trusted source of power to handle challenging work (DieselPro, 2025; Reddit Discussions, 2024).

The Cat 3208 and the Modern Diesel Engines.

The Cat 3208 is frequently contrasted with more recent Caterpillar models in the modern diesel technology such as the C7 or C9 models. Although the 3208 is heavier and less fuel efficient by 10-20, it is more mechanical and durable. Newer engines have the advantages of electronic control, better fuel economy, and meeting more advanced emission standards like the EPA Tier 4, but cannot always perform well in areas that need more rugged and easy-to-service equipment that does not rely on complex diagnostic systems.

The simple mechanical fuel system and hard cast iron construction of the 3208 mean it is less vulnerable to electronic system-related failure and finds a niche in the market where ease of repair and accessibility of parts are more important than the advantages of a high-tech engine (DieselPro, 2025).

Conclusion: The Cat 3208 Engine Still Matters.

Finally, the Cat 3208 engine can be described as an example of a design and engineering philosophy that places particular importance on mechanical simplicity, durability, and maintainability, which have continued to be crucial throughout much of the industrial and marine industry to the present day. It may not have the latest emission controls or fuel usage, but its successful history lives on as a quality assurance of the reliability of Caterpillar.

To those operators who want a tough and reliable engine that can perform all of the hard continuous heavy work with only a few difficulties in maintenance, the Cat 3208 is as current as it was when it was introduced. It is a tale of perennial engineering genius, reflecting the truth that more basic and robust design decisions are not always surpassed by technology.
